Electronic Modules

Electronic Modules (many photos)

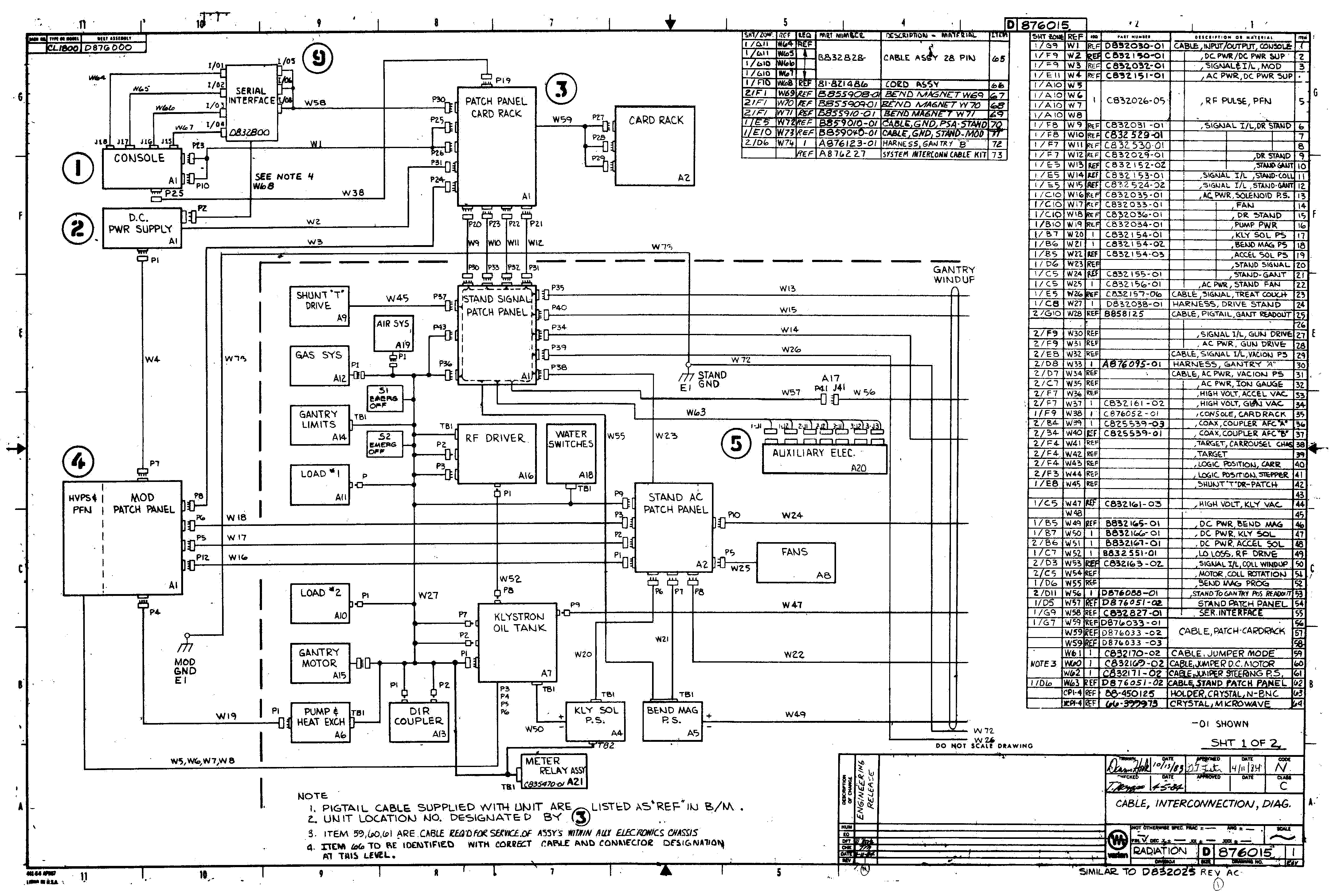

Electronics Block Diagram (1-1)Varian ClinAc pg 1-1.gif (350524 bytes)

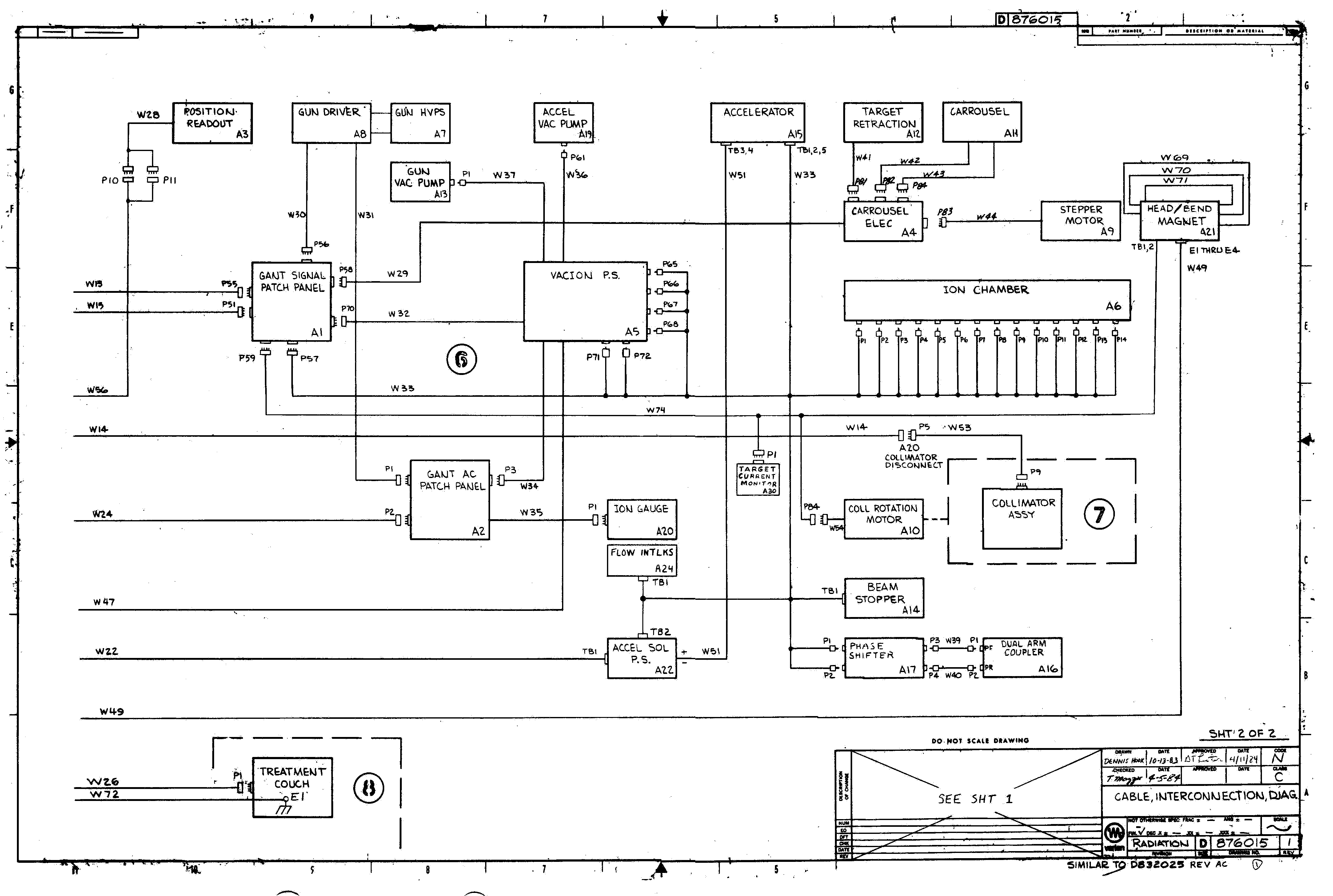

Electronics Block Diagram (1-1a)Varian ClinAc pg 1-1a.gif (182110 bytes)

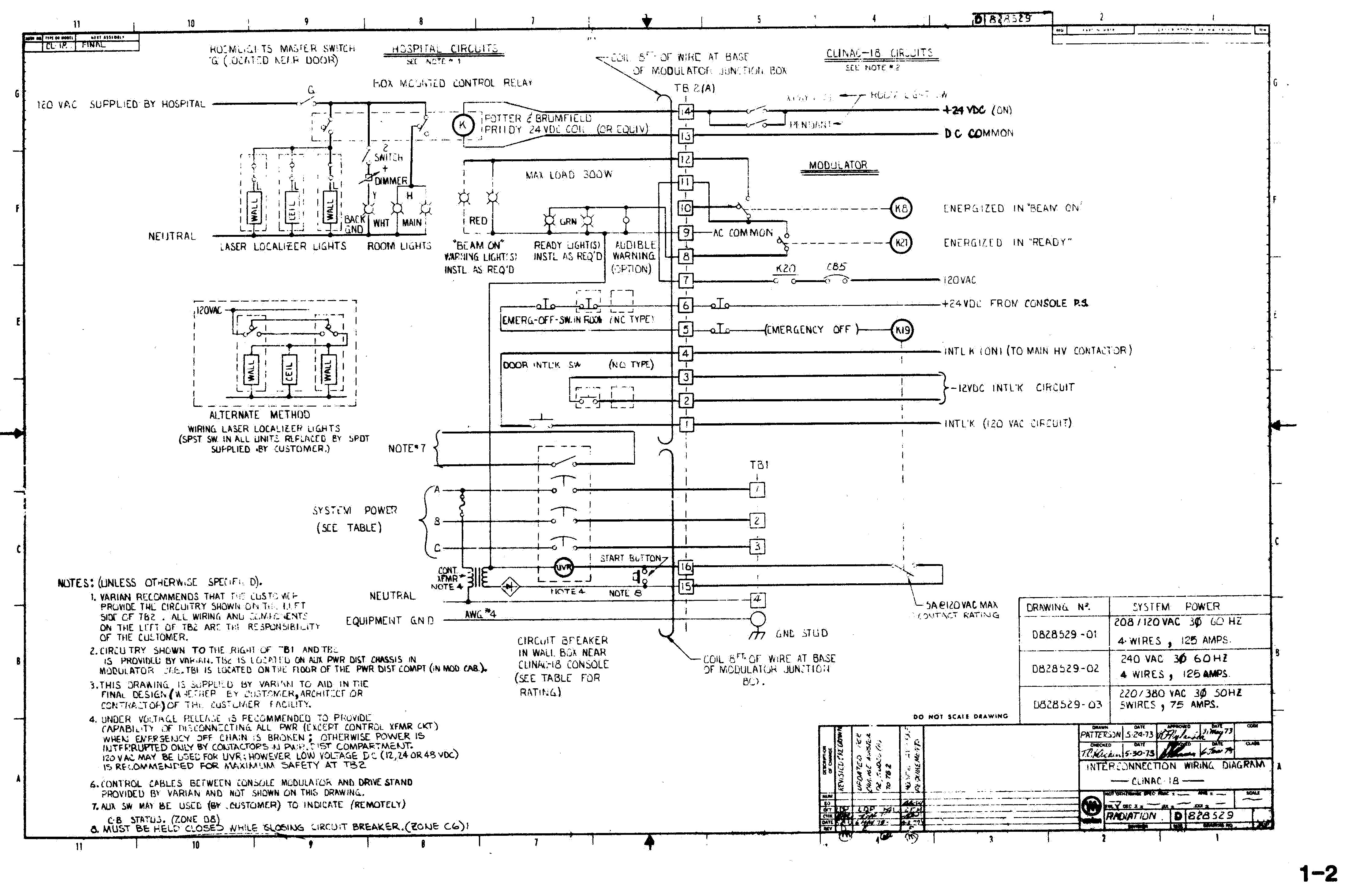

Electronics Block Diagram (1-2)Varian ClinAc pg 1-2.gif (235571 bytes)

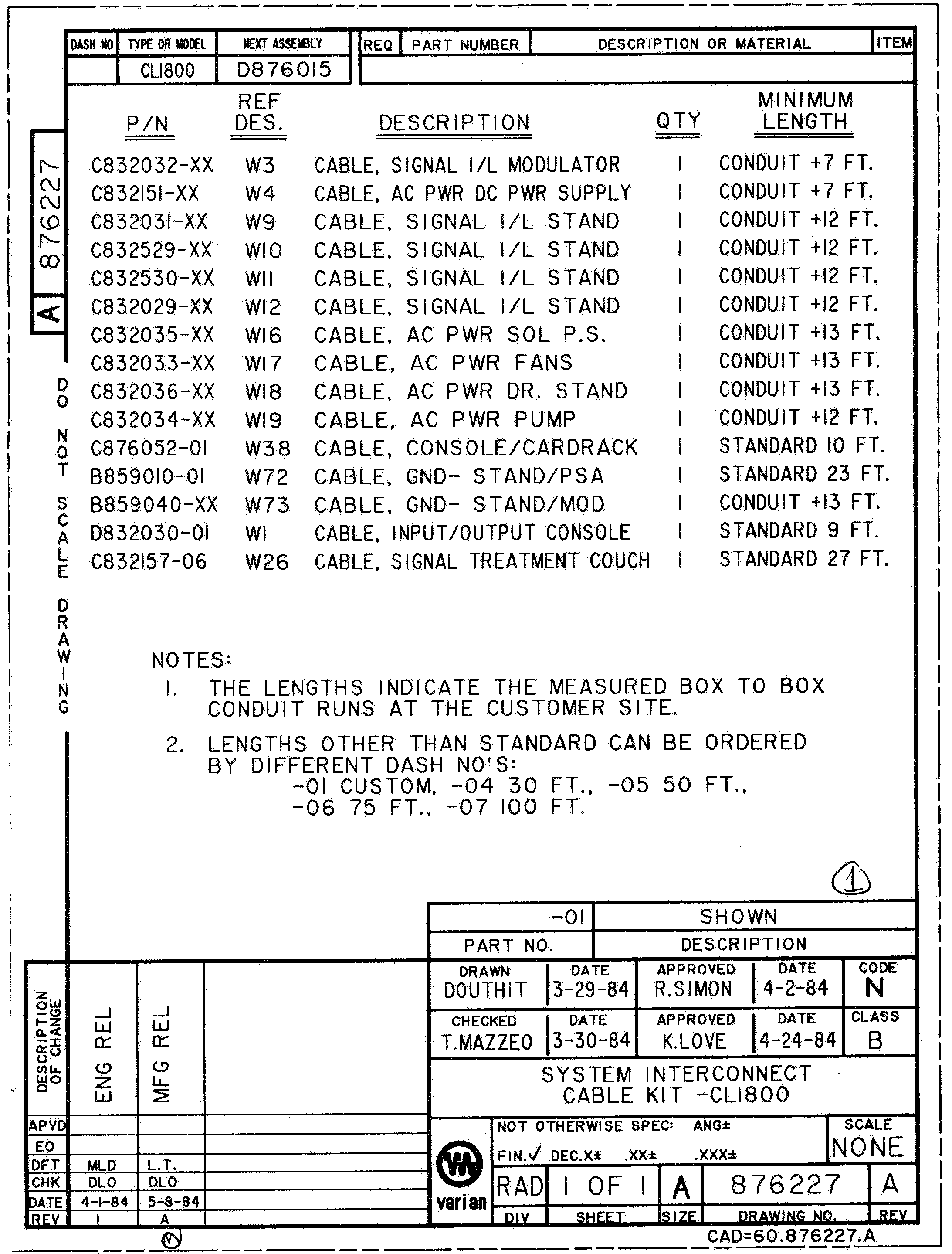

Electronics Block Diagram (1-3)Varian ClinAc pg 1-3.gif (170587 bytes)

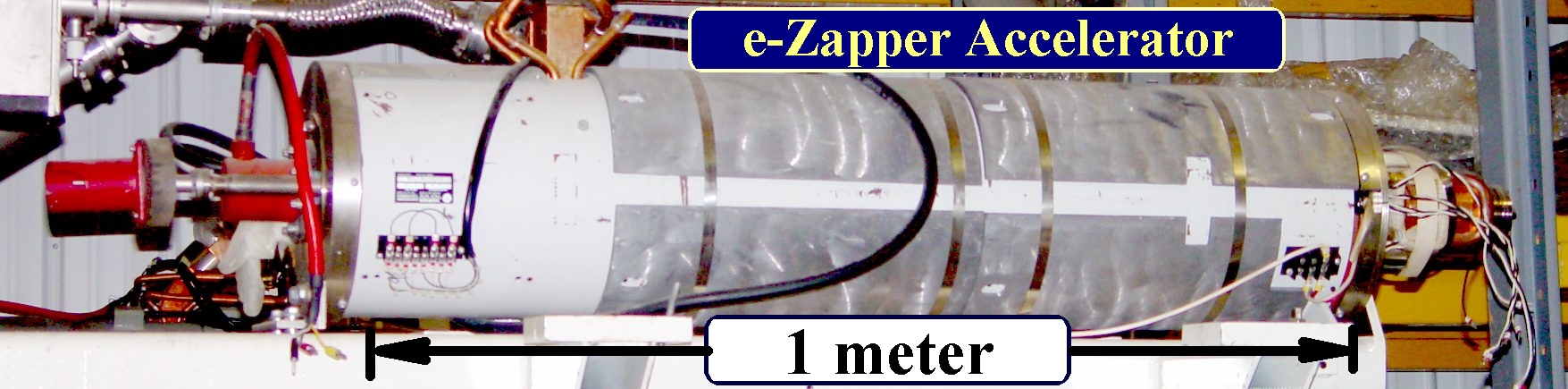

Accelerator (photo)eZapper Accelerator 1a.JPG (411048 bytes)

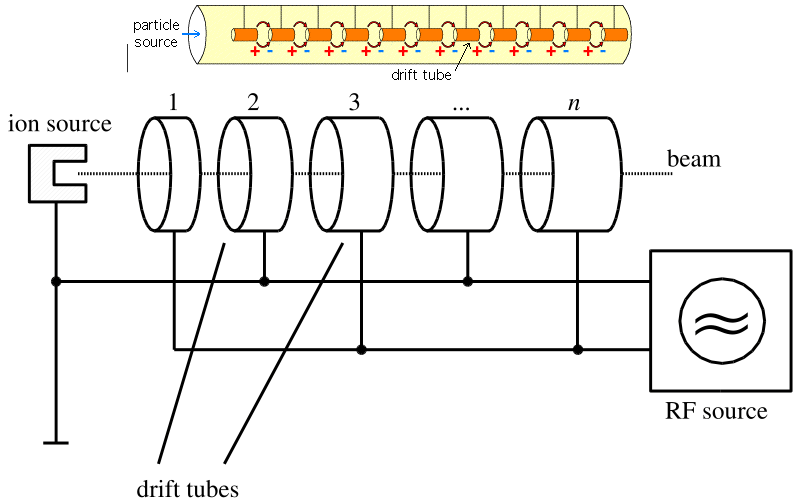

Accelerator (schematic)Linear Accelerator Schematic.png (47299 bytes)
